TM-1018/P

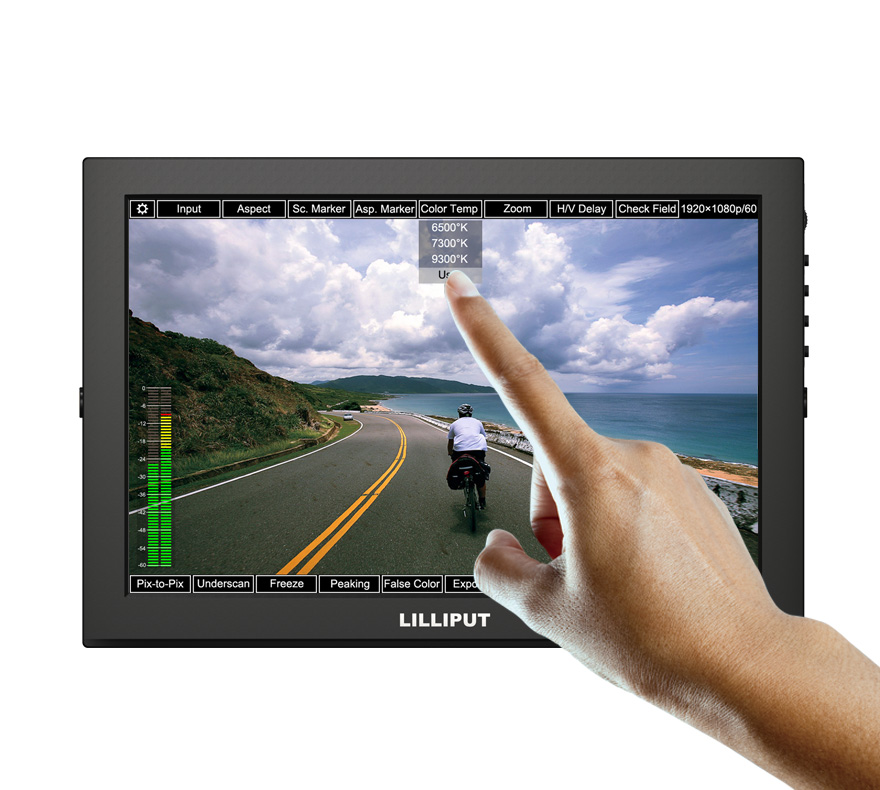

10.1 inch Touch Camera Monitor

- Color/RGB histogram, waveform, vector scope & Audio level meter,
- Multi-touch capacitive screen,
- IPS panel 170° wide viewing angles,
- High resolution: 1280×800,
- High contrast: 800:1,
- Abundant interfaces: HDMI, VGA, AV input,
- Wide voltage: DC 7-24V,
- Tally indicating, Slimmer & portable design!

?

TM-1018/P ? ? (with new advanced Functions, with HDMI input)
TM-1018/O/P (with new advanced Functions, with HDMI?input &?output)

Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.

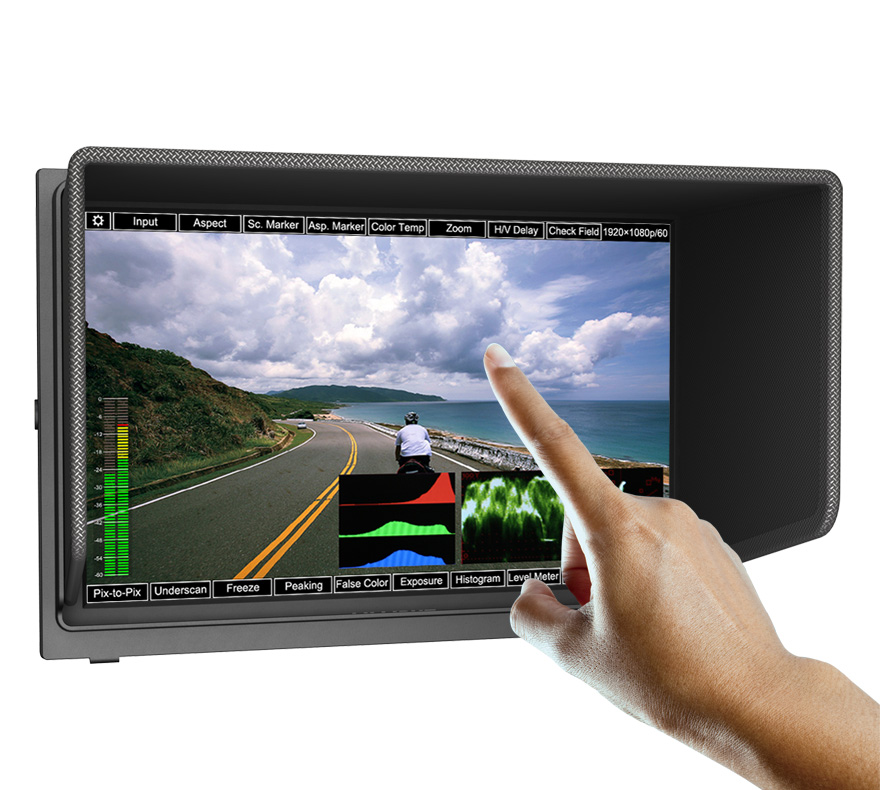

Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time; Professional waveform measurement & color control to realise and record Natural color.

Advanced Functions:
Histogram:

Histogram consist of RGB, Color & Luminance histograms.?

  • RGB histogram: shows the red, green, and blue channels in overlay histogram,
  • Color histogram: shows histograms for each of the red, green, and blue channels,
  • Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.

?

?

Luminance ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Color

?

RGB overlay
?

Waveform

Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used?for measuring the brightness, luminance or chroma values from a video input signal. It not only?can warn the user for out-of-range conditions such as overexposure errors, but also assist?with colour correction & camera white and black balance.?

?

?

Y / Luminance ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?YCbCr?parade

?

? ? ? RGB parade ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Y -?enlarged horizontally


Vector scope

Vector scope shows how saturated the image is and where the pixels in the image land on the color?spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color?gamut range in real time.

??

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Vector scope? ?? ? ? ? ? ? ??? ? ? ? ? ? ? ? ? ? ??? ? ? ? ? ? ? ? ??? ? ????Vector scope? ? ? ? ? ? ? ? ? ? ? ? ? ? ??


Audio Level Meter

The Audio Level Meters provide numerical indicators and headroom levels.?
It can generate accurate audio level displays to prevent errors during monitoring.

?

Audio level meter?



DISPLAY
   Display Screen   10.1" LED IPS
  Touch Panel   Multi-touch capacitive
  Physical Resolution   1280×800, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   350cd/㎡
  Contrast   800:1
  Viewing Angle   170°/170°(H/V)

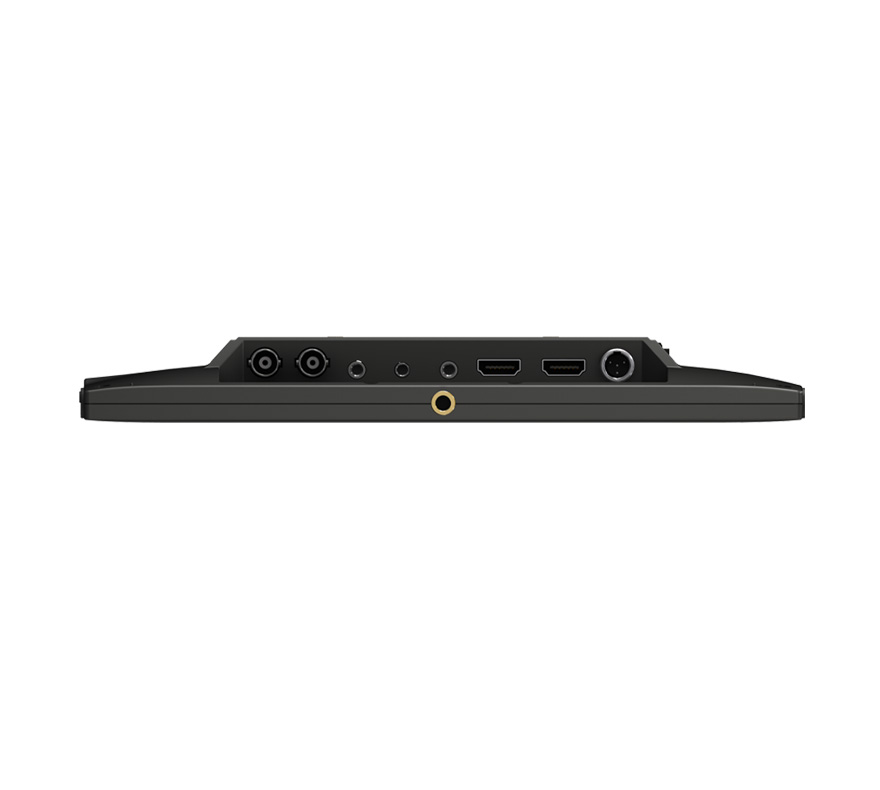

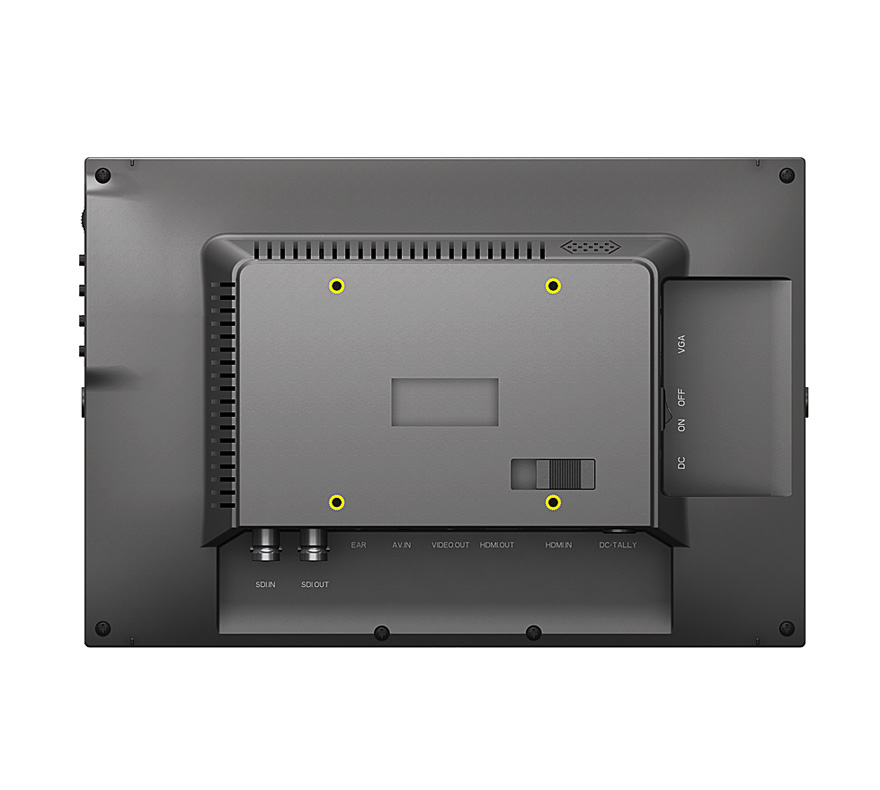

INPUT
   3G-SDI   1(optional)
  HDMI   1
  Composite   1
  TALLY   1
  VGA   1
OUTPUT
   3G-SDI   1(optional)
  HDMI   1(optional)
  VIDEO   1
AUDIO
   Speaker   1(build-in)
  Ear Phone Slot   1
POWER
   Current   1200mA
  Input Voltage   DC 7-24V

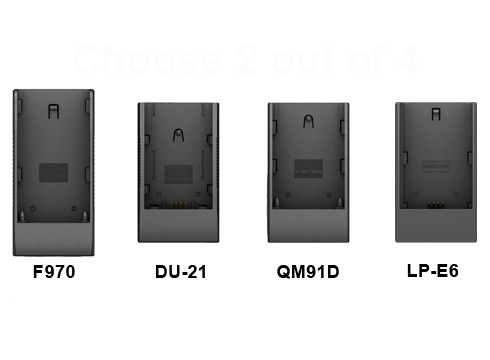

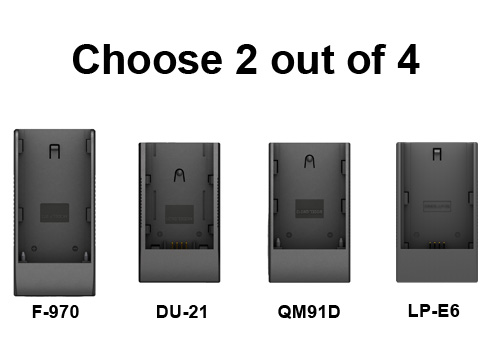

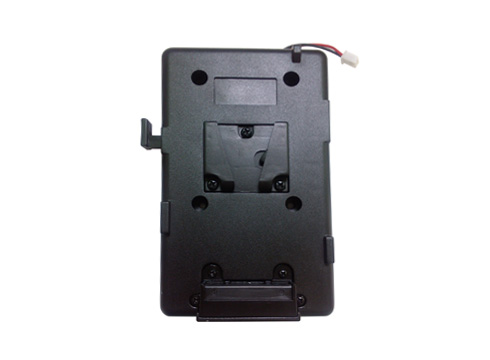

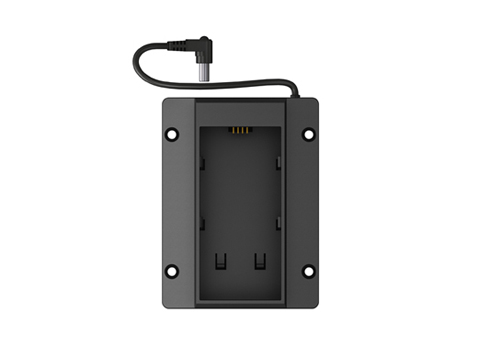

  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤12W
ENVIRONMENT
   Operating Temperature   0℃～50℃
  Storage Temperature   -20℃～60℃
DIMENSION
   Dimension(LWD)   250×170×29.6mm
  Weight   630g
