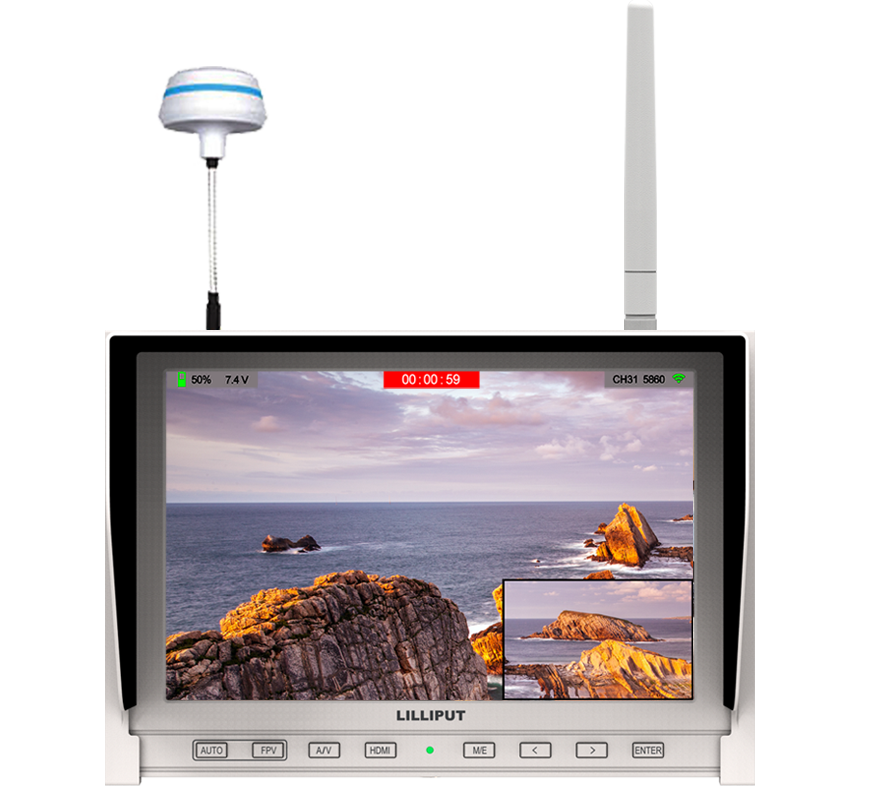

339/DW

7 inch FPV monitor

- Channel auto searching,
- 4 Bands and total 32 channels,
- Built-in battery & battery level,
- Multiple Picture-in-Picture(PiP) modes,
- Wireless signal sensitivity indicator,
- 4-hour timer & alert indicator,
- High resolution: 1280×800,
- High contrast: 800:1,
- Snow screen, no more "blue" screen.

?

Specific Monitor by LILLIPUT for Flying Camera System.
Application for Aerial & Outdoor Photography.
Strongly recommend for aerial enthusiast & professional photographer.

339/DW?(with?dual?5.8Ghz receivers, which cover?4 bands?and total?32 channels,?Channel auto searching)
339/W?(with?single?5.8Ghz receiver,?which cover?4 bands?and total?32 channels,?Channel auto searching)


Features:
Excellent Display & Design

it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.

?

Channel Auto Searching

It supports 32-channel totally, press "AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.




PiP Mode(339/DW only)

339/DW owns dual antennas, which can receive two different video signal channels, and technically overlayed the video signals directly on the same monitor. ?Also multiple Picture-in-Picture(PiP) modes can be selected.

?

4-hour Timer & Alert Indicator

Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 4-hour countdown, and it will alert when 1 minute left.

?

Built-in Battery & Battery Level

Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.

?

Wireless signal?sensitivity indicator

Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.

??

5.8GHz Wireless AV Receiver

  • Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
  • Simulation of composite video AV inputs, aerial camera connection.
  • 5.8Ghz frequency?4 Bands and total 32 channels.
  • 100 to 2000 meters wireless distance.
  • Built-in 2600mAh high capacity rechargeable battery, make power cables free.
  • Snow screen, no more "blue" screen.
Wireless Receiver Channel (Mhz)
?
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band1
5865
5845
5825
5805
5785
5765
5745
5725
Band2
5733
5752
5771
5790
5809
5828
5847
5866
Band3
5705
5685
5665
5645
5885
5905
5925
5945
Band4
5740
5760
5780
5800
5820
5840
5860
5880?

TIPS:?To avoid adjacent frequency disturbance, please ensure two transmitters frequency difference more than 20MHz.
For example:
(ANT1) 5800MHz - (ANT2) 5790MHz = 10MHz < 20MHz ?√
(ANT1) 5828MHz - (ANT2) 5790MHz = 38MHz > 20MHz ?×

DISPLAY
 ??Panel ??7" IPS, LED backlit
??Physical Resolution ??1280×800
??Aspect Ratio ??16:10
??Brightness ??400cd/㎡
??Contrast ??800:1
??Viewing Angle ??178°/178°(H/V)

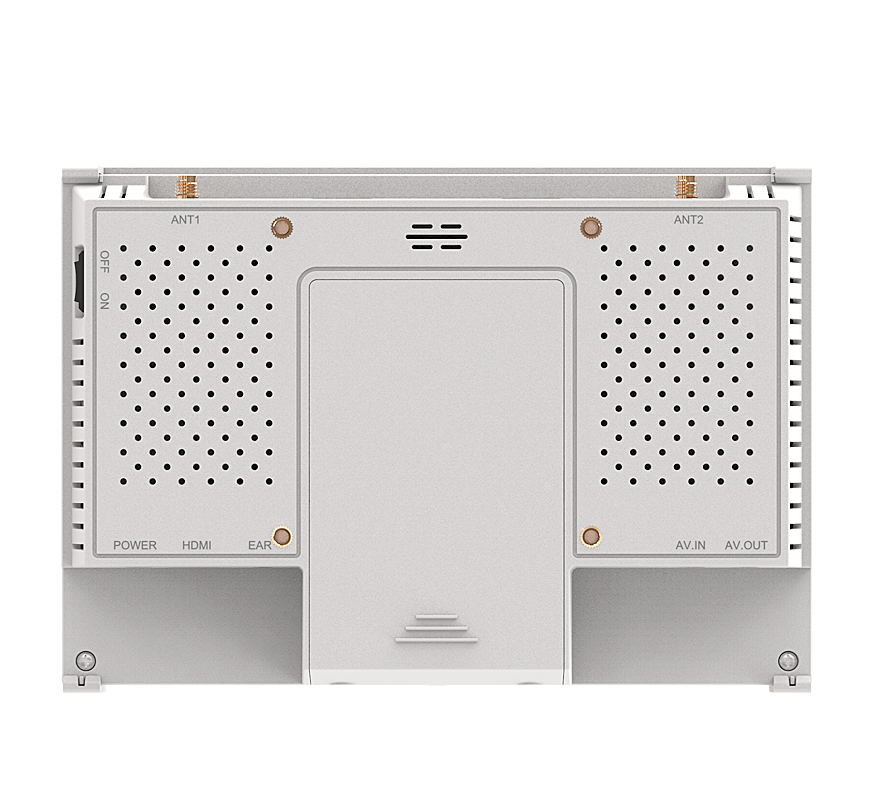

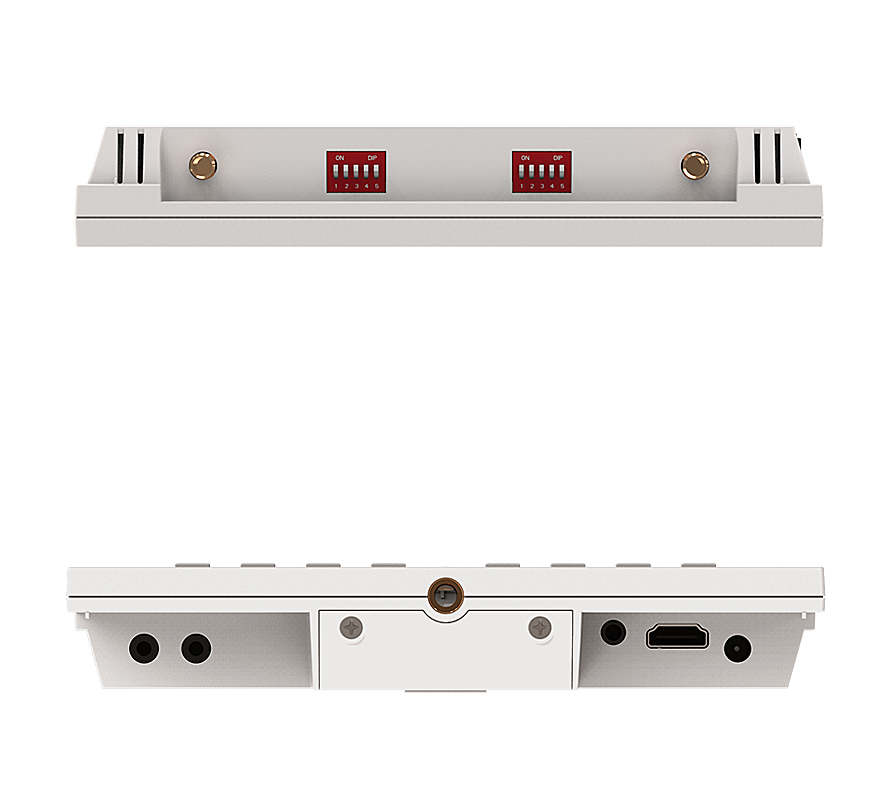

INPUT
 ? Wireless 5.8GHz AV ??2 (339/DW), 1 (339/W)
??HDMI ??1
??AV ??1
OUTPUT
 ? AV ??1
AUDIO
 ??Speaker ??1
??Earphone ??1
POWER
 ??Current ??1300mA
??Input Voltage ? DC 7-24V
??Battery ? Built-in 2600mAh battery

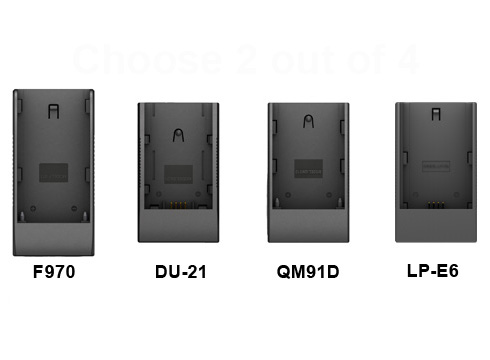

??Battery Plate (optional) ??V-mount / Anton Bauer mount /
??F970 / QM91D / DU21 / LP-E6
??Power Consumption ??≤18W
ENVIRONMENT
 ??Operating Temperature ??-20℃～60℃
??Storage Temperature ??-30℃～70℃
DIMENSION
 ??Dimension(LWD) ??185×126×30 mm
??Color ??White/Black?
??Weight ? 385g

?

Tips: Recommend using original Lilliput accessories to prevent device from damage.

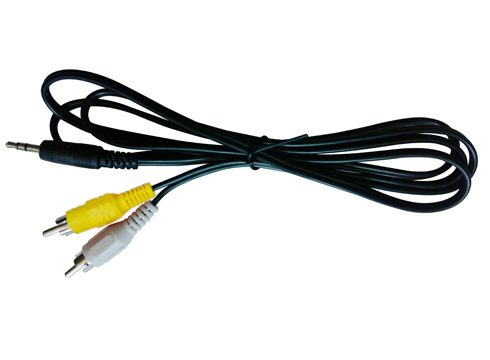

  • AV output cable

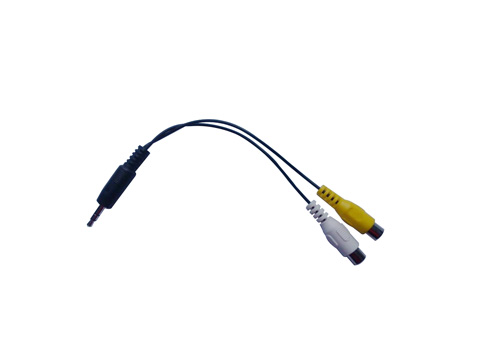

  • AV input cable

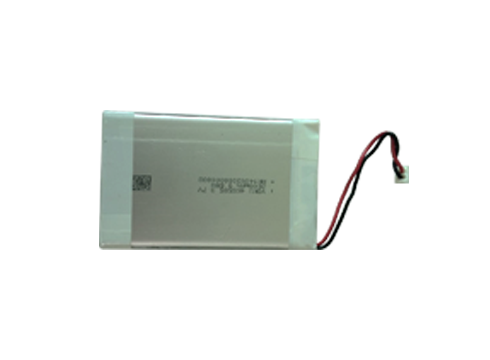

  • 2600mAh-7.4V Li-ion battery

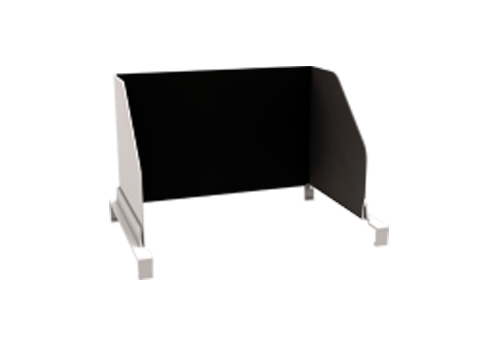

  • Foldable Sunshade

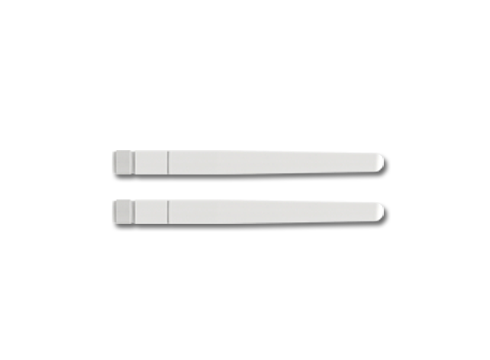

  • 5.8GHz Antenna

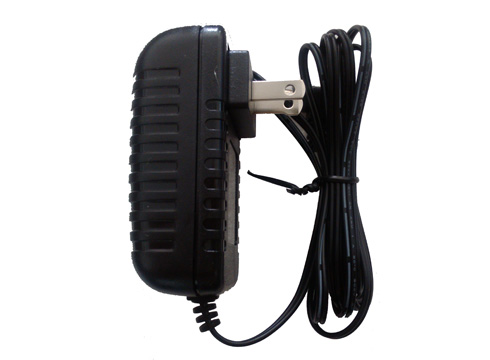

  • 12V DC adapter
  • Manual

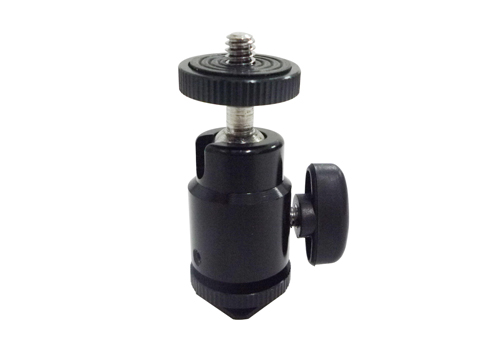

  • Shoe Mount (optional)

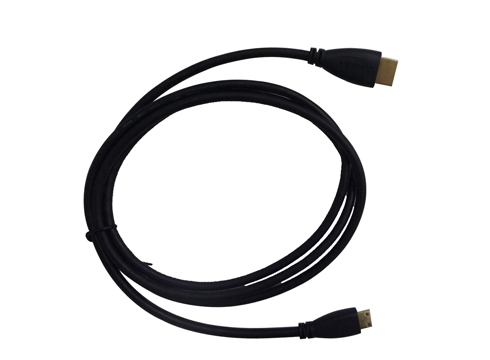

  • HDMI A/C cable (optional)

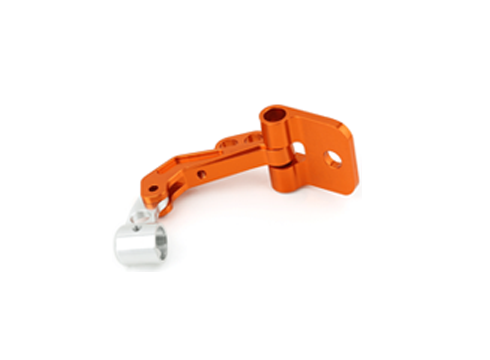

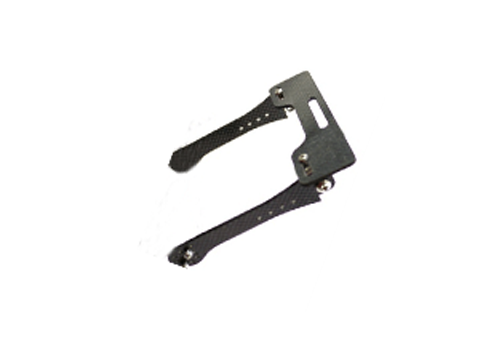

  • FPV double-rod bracket (optional)
  • FPV single-rod bracket (optional)

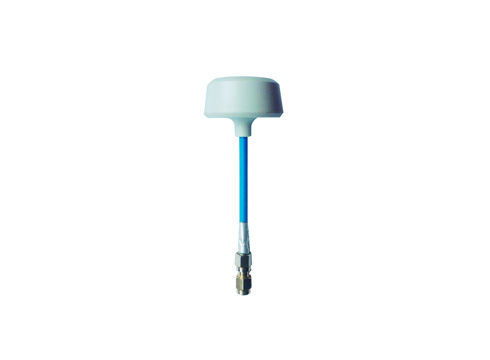

  • 5.8GHz omnidirectional antenna (optional)
  • VESA battery bracket(optional)

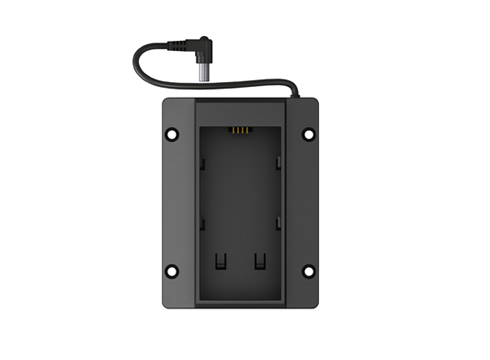

  • Battery Plate(optional)
  • Model No.: ?*
  • Name: *
  • Country: ?
  • E-mail: *
  • Website: ?
  • Tel: ?
  • Fax: ?
  • Message:



DISPLAY
   Panel   7" IPS, LED backlit
  Physical Resolution   1280×800
  Aspect Ratio   16:10
  Brightness   400cd/㎡
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)
INPUT
   Wireless 5.8GHz AV   2 (339/DW), 1 (339/W)
  HDMI   1
  AV   1
OUTPUT
   AV   1
AUDIO
   Speaker   1
  Earphone   1
POWER
   Current   1300mA
  Input Voltage   DC 7-24V
  Battery   Built-in 2600mAh battery
  Battery Plate (optional)   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤18W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension(LWD)   185×126×30 mm
  Color   White/Black
  Weight   385g
