665/O/P/WH

7 inch wireless HDMI Monitor

- No HDMI cable, no trouble,
- Wireless transmission without delay,
- Transmitter distance: 30-meter,
- FHD 60Hz video format supported,
- High contrast: 800:1,
- WHDI, YPbPr & HDMI input/output;
- Wide voltage: DC 6.5-24V;
- Flexible folding sunshade.

?

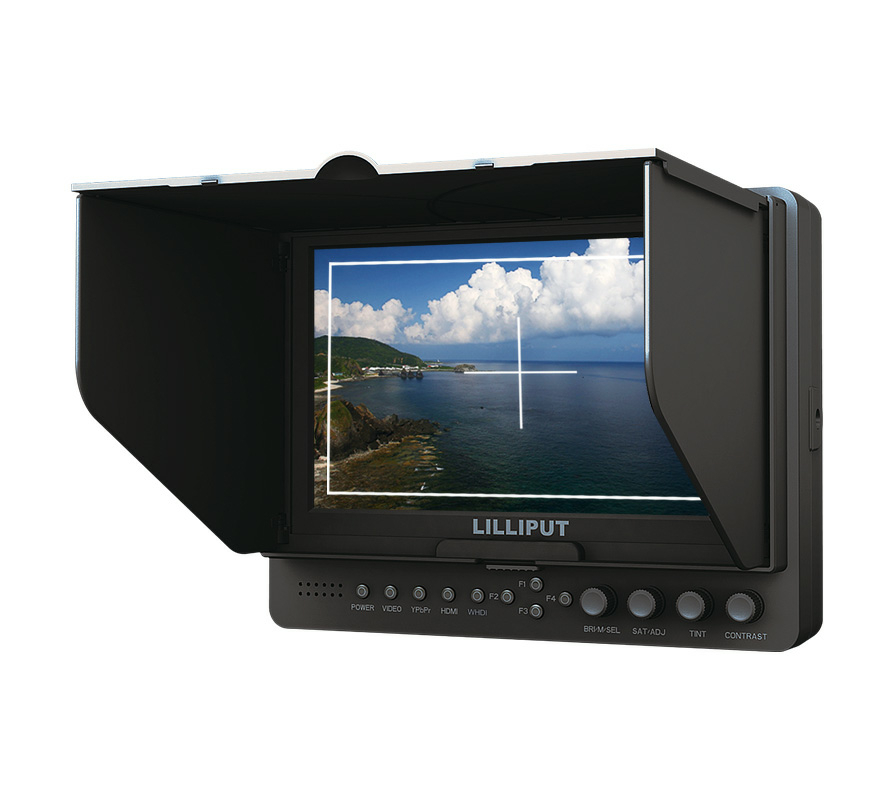

The 665/P/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.

Note: 665/P/WH ? ? (with advanced functions, wireless HDMI input)
???????????665/O/P/WH (with advanced functions, wireless HDMI?input & HDMI output)
???????????665/WH ? ? ? ? (Wireless HDMI?input)
???????????665/O/WH ? ? (Wireless HDMI?input & HDMI output)

?

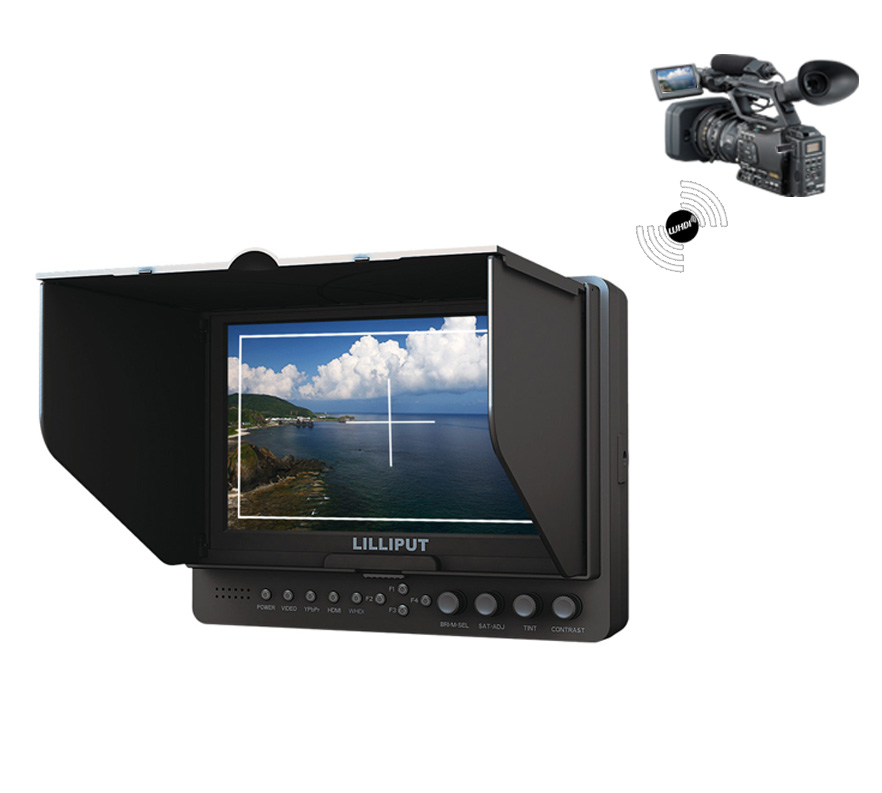

PTP & PTMP Transmission:

  • PTP: Point-to-point (standard),
  • PTMP: Point-to-multipoint (optional)
    *One transmitter can work with one receiver or multi-receivers.

?

PTMP ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?PTP



Peaking Filter:??

This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.




?

FALSE COLORS FILTER:??

The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.?

  • OVEREXPOSED:?Overexposed objects?will display as RED;
  • PROPERLY EXPOSED:?Properly exposed?objects will display elements of?GREEN and PINK;
  • UNDEREXPOSED:?Underexposed objects show as?DEEP-BLUE to DARK-BLUE.

?

EXPOSURE (ZEBRAS):??

The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.





?

BRIGHTNESS HISTOGRAM:??

The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.




DISPLAY
   Panel   7" LED backlit
  Physical Resolution   1024×600, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   250cd/㎡
  Contrast   800:1
  Viewing Angle   160°/150°(H/V)
INPUT
   WHDI   1
  HDMI   1
  YPbPr   3(BNC)
  VIDEO   1
  AUDIO   1
OUTPUT
   HDMI   1(optional)
  VIDEO   1
POWER
   Current   800mA

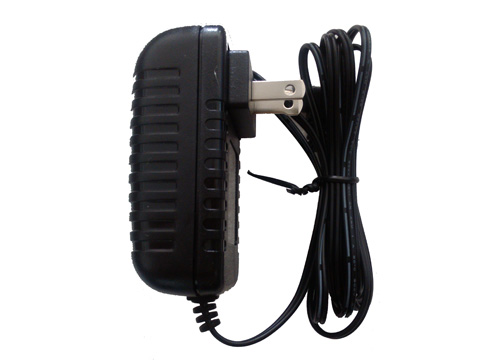

  Input Voltage   DC 7-24V(XLR)

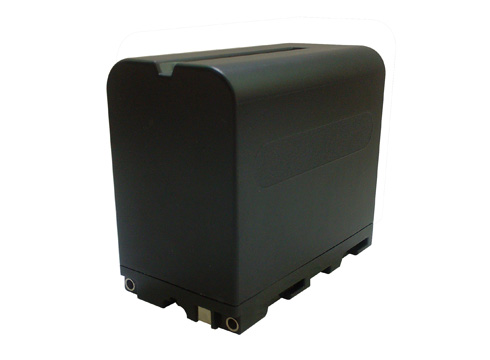

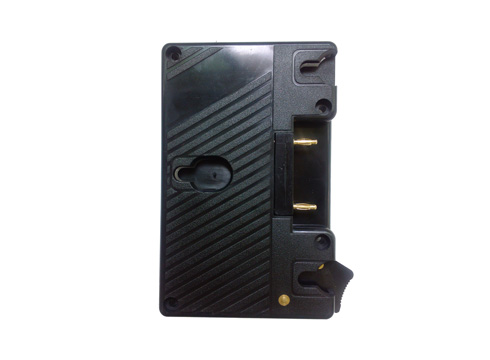

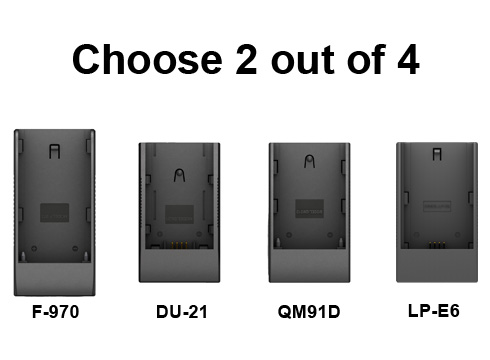

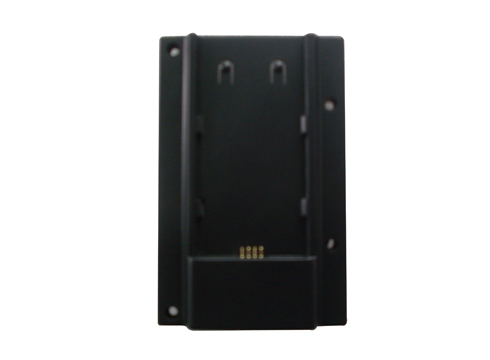

  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤10W
ENVIRONMENT
   Operating Temperature   -20℃～60℃
  Storage Temperature   -30℃～70℃
DIMENSION
   Dimension(LWD)   194.5×150×38.5 / 158.5mm (with cover)
  Weight   560g / 720g (with cover)
VIDEO FORMAT
   WHDI(wireless HDMI)

  1080p 60/50/30/25/24Hz
  1080i 60/50Hz, 720p 60/50Hz
   576p 50Hz, 576i 50Hz
   480p 60Hz, 486i 60Hz

  HDMI   1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
  1080i 60/59.94/50Hz, 1035i 60/59.94Hz
   720p 60/59.94/50/30/29.97/25Hz
   576i 50Hz,  486i 60/59.94Hz, 480p 59.94Hz
