FA801-NP/C/T

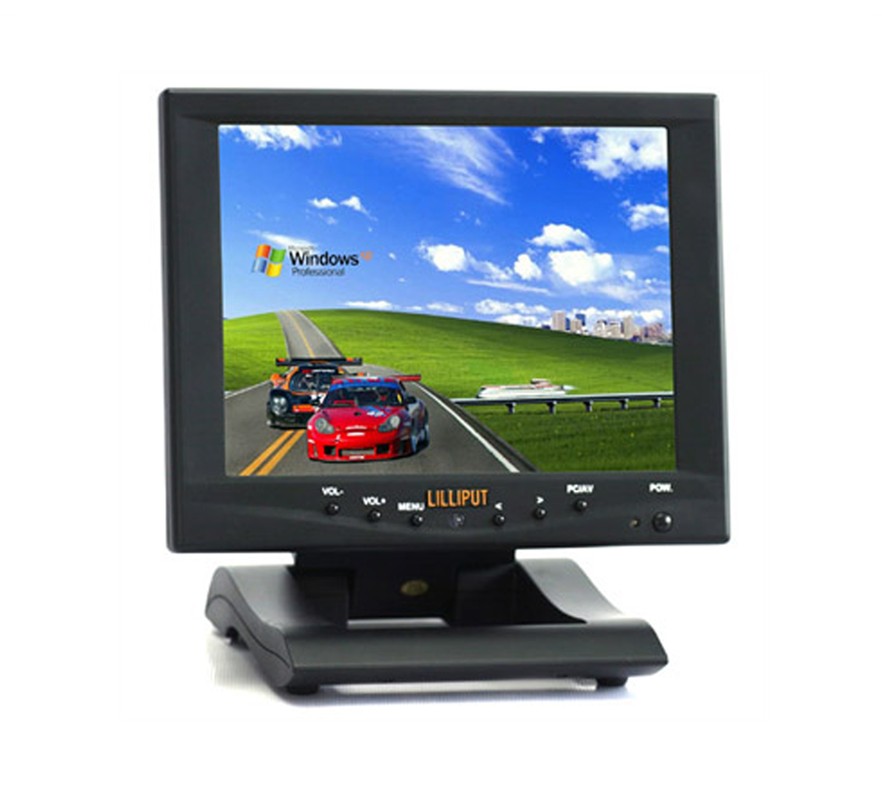

8˝ Touchscreen VGA Monitor

Touch screen control;
With VGA interface, connect with computer;
AV input: 1 audio, 2 video input;
High contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;

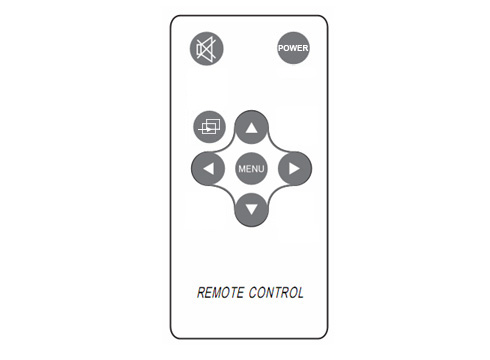

Remote control.

Touch screen control;
With VGA interface, connect with computer;
AV input: 1 audio, 2 video input;
High  contrast: 500:1 ;
Built-in speaker;
Built-in multi-language OSD;
Remote control.

Note: FA801-NP/C without touch function.
        FA801-NP/C/T with touch function.

  Display Screen   8" LED backlit (4:3)
  Resolution   800×600, suport up to 1920 x 1080
  Color System   PAL-4.43, NTSC-3.58
  Touch Panel   4-wire resistive touch panel (5-wire for optional)
  Contrast Ratio   500:1
  Brightness   250cd/㎡
  Viewing Angle  140°/120°(H/V)
  Input Signal   AV1, AV2, VGA
  Audio Output   ≥100mW
  Input Voltage   DC 11-13V
  Power Consumption   ≤9W
  Dimension(LWD)

  204 × 163 × 36 mm (without bracket)

  Weight   1215g (with bracket)
